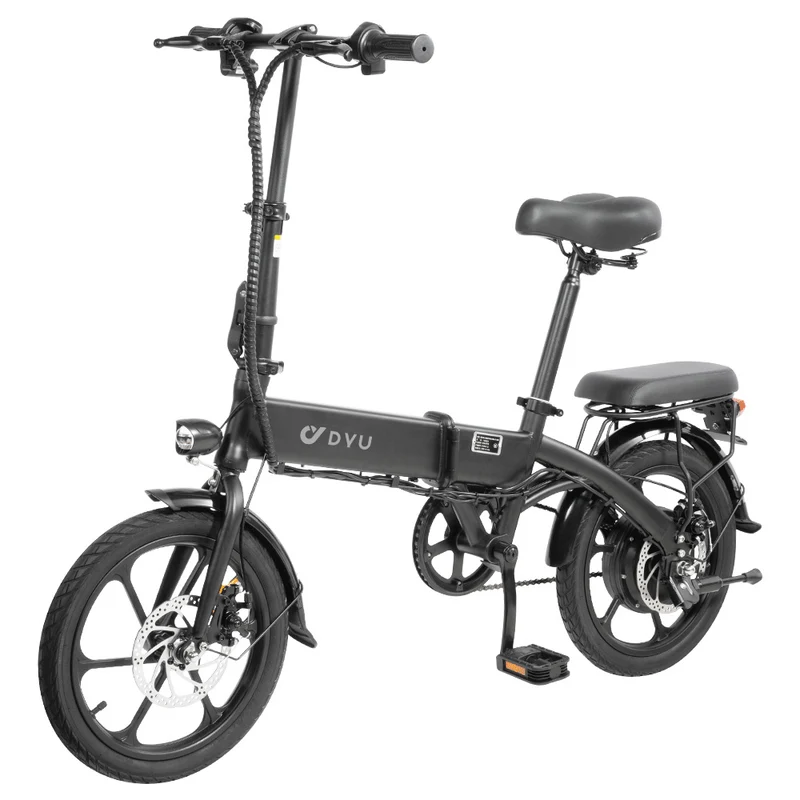

DYU A1F Electric City Bike 16" Tire 250W Motor 36V 7.5Ah Battery

[DESCRIPTION]

36V, 7.5 AH LITHIUM-ION BATTERY
The A1F has a high-quality battery, it will allow you to travel 30-37 miles

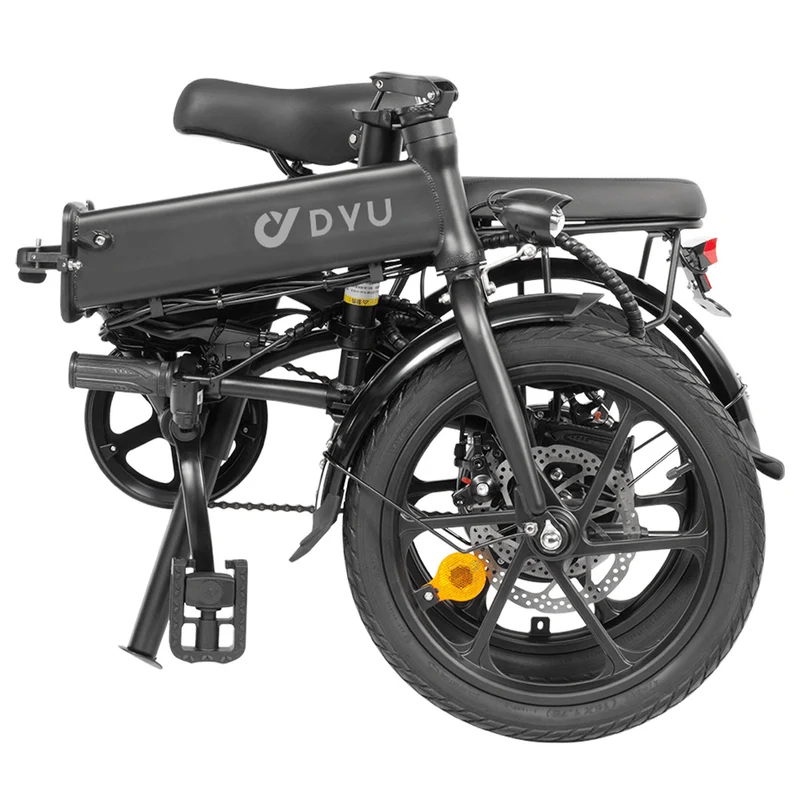

16INCH FOLDING ELECTRIC BIKE
You can easily fold the A1F, and because of its small size, you can easily carry it to any place, whether it is on the subway or in a shopping mall.

LCD DISPLAY
The A1F features a Gear Shift Accelerator to output the electric power safer and fast while you ride with easy to see battery charge display.

WEAR RESISTANT
Features highly durable and wear-resistant and explosion-proof vacuum tires. The A1F is suitable for various road conditions durable and non-slip.

250W POWERFUL MOTOR
A1F is equipped with a 250W high-power motor, which can provide you with powerful power, allowing you to easily ride on urban roads.

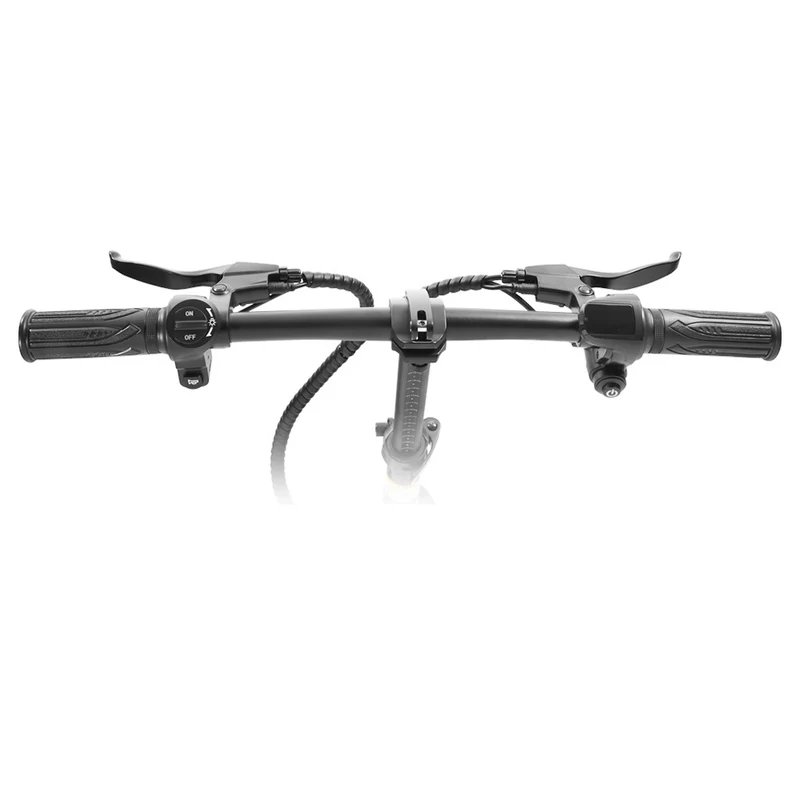

SPEED ​​THROTTLE HANDLE AND CONTROL BUTTONS
You can adjust the speed to the best speed for your driving by using the speed throttle knob. And you can also adjust the lights, driving modes, etc.

[/DESCRIPTION][SPECIFICATIONS]

Classification	Item	Specification
General	Brand	DYU
	Type	Electric bike
	Model	A1F
	Color	Black
Vehicle Performance	Dimensions L×W×H	765*400*660 mm(Folding size)
		1342*542*1050 mm(Released size)
	Package Size	1300*300*650mm
	Operating Temperature	-10~40°C
	Storage Temperature	-20~50°C
	Net Weight	20.1kg
	Gross Weight	23kg
	IP Rating	IP54
	Max. Speed	15.5 Mph(25 km/h)
	Motor type	250W
	Electric Range	<50km
	Assisting Range	25 km
	Shock-absorption	and seat pole suspension
	Brake	Front
		Front fork suspension
	Charging Time	about 3-4 hours
	Payload	≤120kg
Head of Bicycle	Material	Aluminum alloy
	Handgrip Material	TPR
	Foldable	Foldable, Adjustable
	Adjustable of height	Yes
	Throttle lever	Yes
	Small bell	/
	Brake handle	left/Right
Front Wheel	Drivenmethod	/
	Material	Aluminum alloy
	Hub type	Integrated molding hub
	Size	16
	Tire	Mechanical disc brake
	Brake	Motor drive wheel
Rear Wheel	Drivenmethod	/
	Material	Aluminum alloy
	Hub type	Integrated molding hub
	Size	16
	Tire	Rubber pneumatic tire
	Brake	Mechanical disc brake
Main Frame	Material	Aluminum alloy
	Type	Main Girder Folding
	Parking	Parking stand
	Battery location	Built-in main girder
	Reflect Sticker	/
	Max Steering Angle	60°(each side)
	Rear Tale Light	/
	Air pump	Yes
	Foot Pad Material	Nylon
	Foot Pad Type	Folding
	Carrying handle	Yes
Battery	Material	Lithium battery
	Type of batteries	Removable portable charging
	Battery number	40 PCS
	Rated Voltage	36V
	Charge cut-off voltage	42V
	Rated Capacity	36V7.5Ah
	Charging Temperature	0~40°C
	Battery ManagementSystem	Over-heating, Short circuit, Over- current, Over-charge protection
Charger	Input Voltage	100~240V, 50/60Hz
	Output Voltage	42V DC
	Output Current	2A
	Output Power	84W
Motor	Brand	\
	Motor Type	Hall Brushless Gear DC Motor
	Rated Voltage	36V
	Rated Power	CE Version: 250W
	Max. Power	\
	Torque	45 N.m
	Rated speed	380 r/min
System Control	Turn On/Off	Visible button on the speed control handle
	Riding Modes Switch
	Front Light Switch
	Display Type	886 Type HD LCD Display, Clearly under the sunshine
	Display Contents	Speed, mileage, Gear, glitch
	Electronic booster starting point	6 KM start (CE )(Can change to 0KM start by enduser)
	Under voltage protection	31±2V
	Over current protection	15±2A
Package contents	1 x DYU A1F Electric bicycle
	1 x English Manual
	1 x Charger

[/SPECIFICATIONS]
