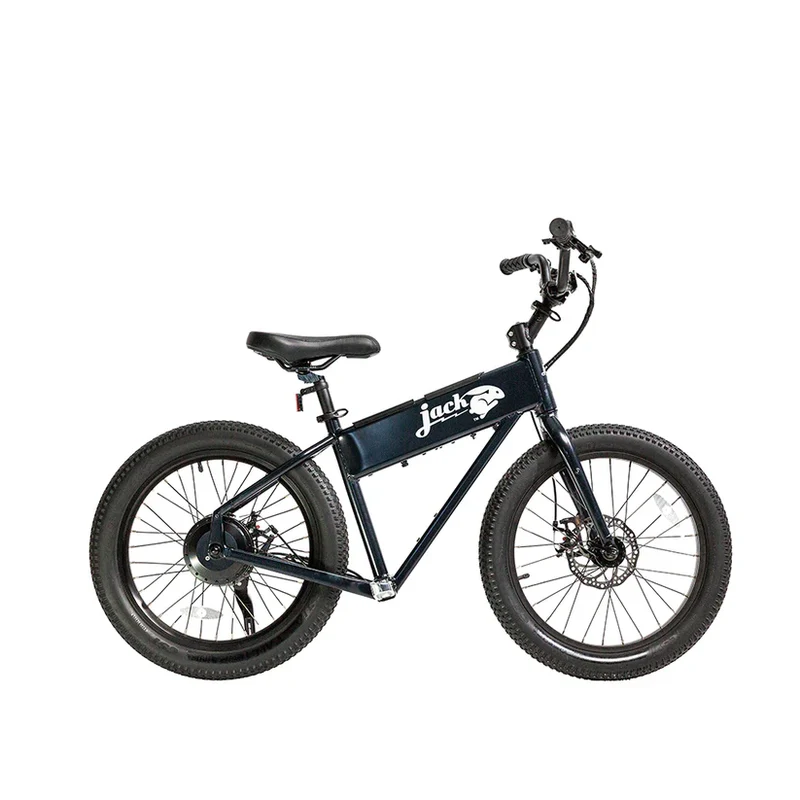

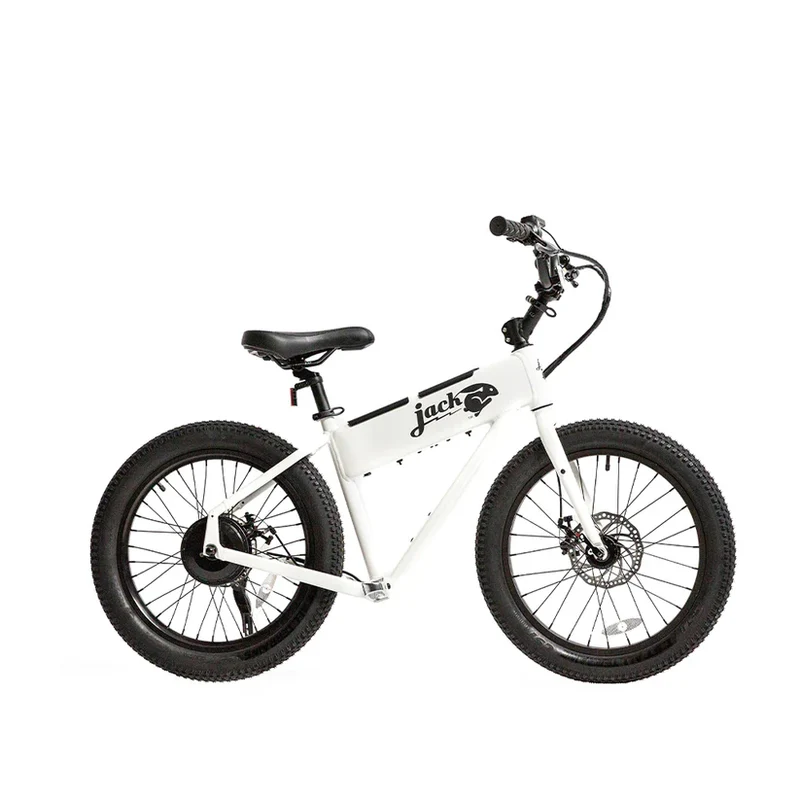

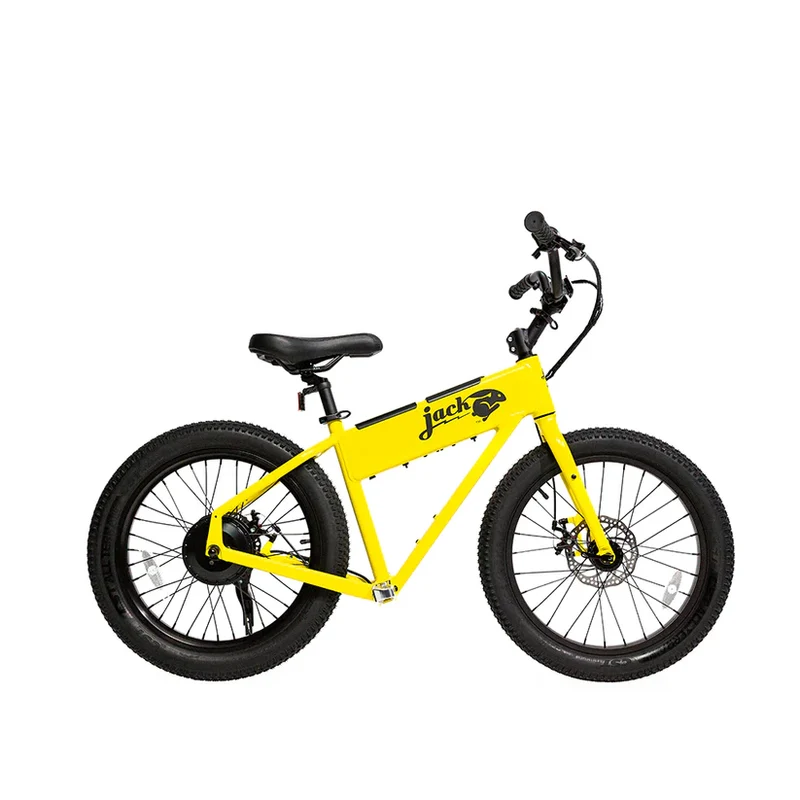

JackRabbit XG

Tech
Highlights

Weight

37 lbs

Range

48+ miles

Max Speed

20 mph

Off-Road Mode

Unlockable 24

Motor

749 Watt rear hub brushless electric motor

Battery

Li-Ion 36V 20Ah 720Wh

Battery Safety

Tested & compliant with UL2271 & UL2272

Bike Safety

CPSC (CFR - Title 16 - Part 1512)

Display

Multi-function backlit Speedometer

Power Levels

ECO (7 mph), MID (15 mph), HIGH (20 mph), OFF-ROAD (24 mph)

Battery Level

5 level power indicator

Power

Single on/off button with auto power shut off

Throttle

Thumb-activated variable speed control

Lights

Standard front and rear lights via light plug ports

Foot Pegs

Forged aluminum black mega metal foot rests

Grips

Ergonomic

Charger

110-240V input, 42V 4A output

Charge Time

~5 hours

Charging

Charge through frame or remove battery to charge

Dimensions

Ride Mode: 53.5” long x 27” wide x 40.5” high | Flat Mode: 53.5” x 7” x 43” | Travel Mode: 51” x 7” x 31”

Water Resistance

IPX4 resistant to rain and water splashes. Non-submersible

Frame

Monocoque 6061-T6 aluminum alloy

Seatpost

7” adjustable range, replaceable 27.2mm diameter

Rear Tire

20” x 2.8” suspension tire

Front Tire

20” x 2.8” suspension tire

Tire Tube

Standard 20” x 2.2-2.5” inner tube

Min Turn Radius

37” (940 mm) - capable of 180 degree turns in narrow hallways

Max Incline

26% grade - or steeper with human-powered kick-stride assist with throttle

Brake

Mechanical front & rear disc caliper with 180 front & 160 rear mm rotors

Heights Supported

4’9” to 6’6”

WEIGHT SUPPORTED

Up to 275 pounds (125 kg)
